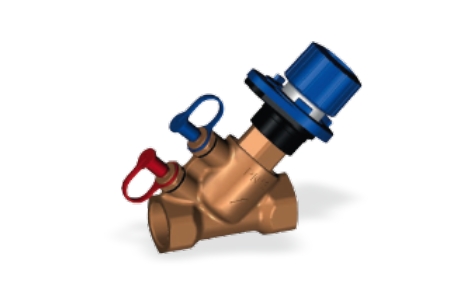

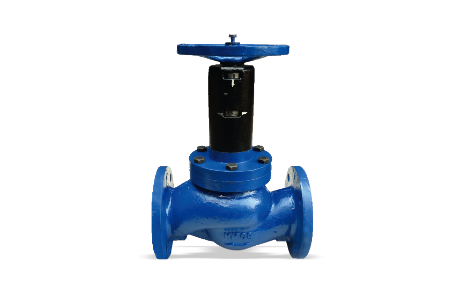

OVERVIEW
Balancing valves are used in central heating and cooling systems to maintain consistent water flow. They ensure the design flow rate is always met using the latest flow technology. Tyroflo provides a broad variety of manual balancing valves for HVAC, suitable for both heating and cooling applications.

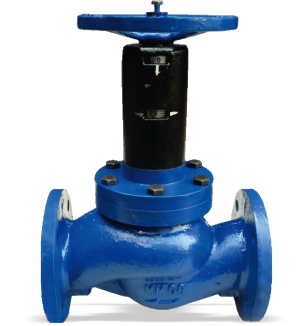

MODEL DECODE

-
PN Rating
PN Rating 0 PN - 16 1 PN - 25 -
Body - Disc
Body Disc 0 Cast Iron Stainless Steel 1 Ductile Iron Stainless Steel -
End Connection
End Connection T Threaded F Flanged Series
300-Series Balancing Valve Size
Size xxx
MODEL DECODE

-
PN Rating
PN Rating Operator 0 PN - 16 Lever 1 PN - 16 Gear Box 2 PN - 16 Extended Lever 3 PN - 16 Bare Shaft 4 PN - 25 Lever 5 PN - 25 Gear Box 6 PN - 25 Extended Lever 7 PN - 25 Bare Shaft -
Body
Body Disc 0 Cast Iron Ductile Iron 1 Cast Iron Stainless Steel 2 Ductile Iron Ductile Iron 3 Ductile Iron Stainless Steel 4 Cast Steel Ductile Iron 5 Cast Steel Stainless Steel 6 Aluminium Aluminium -
End Connection
End Connection W Wafer L Lug -
Series
Series Manual Butterfly Valve -
Size
Size xxx
FEATURES
- Type : Flange/Threaded
- Medium Temperature : -10 °C to 110 °C
- Pressure Rating : PN16/PN25
- Suitable Media : Potable Water
- Shell Test Pressure : 24 Bar
- Body : CI/DI
- Seal Test Pressure : 17 Bar
- Disc : SS
